Photo Gallery - ASTRID2 Photos

×

1/20

2/20

3/20

4/20

5/20

6/20

7/20

8/20

9/20

10/20

11/20

12/20

13/20

14/20

15/20

16/20

17/20

18/20

19/20

20/20

❮ ❯

ASTRID2 in 2016, photo taken by Rasmus R�rb�k.

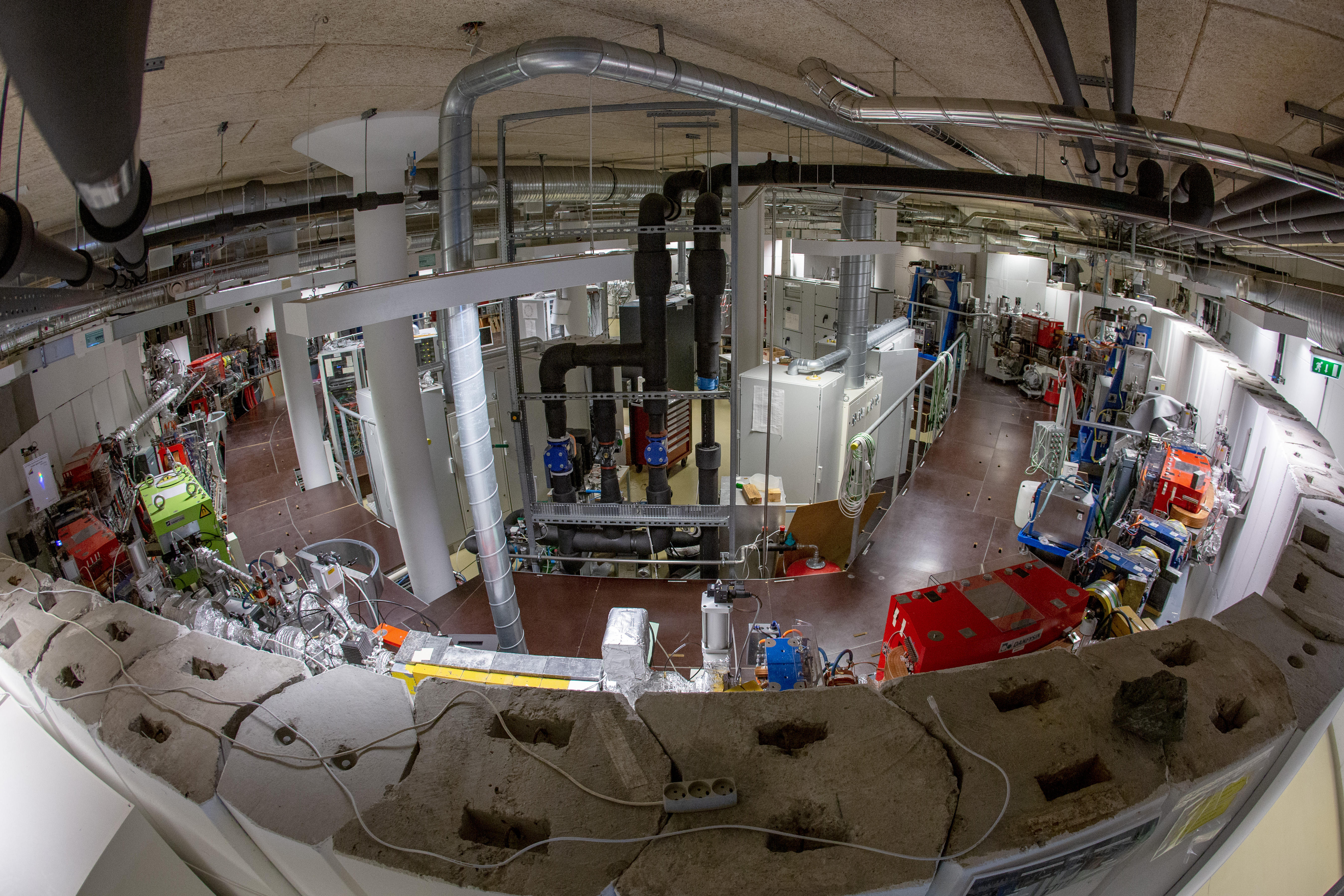

ASTRID2 in 2022, photo taken by Lars Kruse.

Synchrotron light produced by ASTRID2.

Girder 1 of ASTRID2.

End section of a girder, consisting of dipole (red), quadrupole (blue) and corrector (green) magnets.

Mid-section of a girder, consisting of quadrupole (blue), sextupole (yellow) and corrector (green) magnets

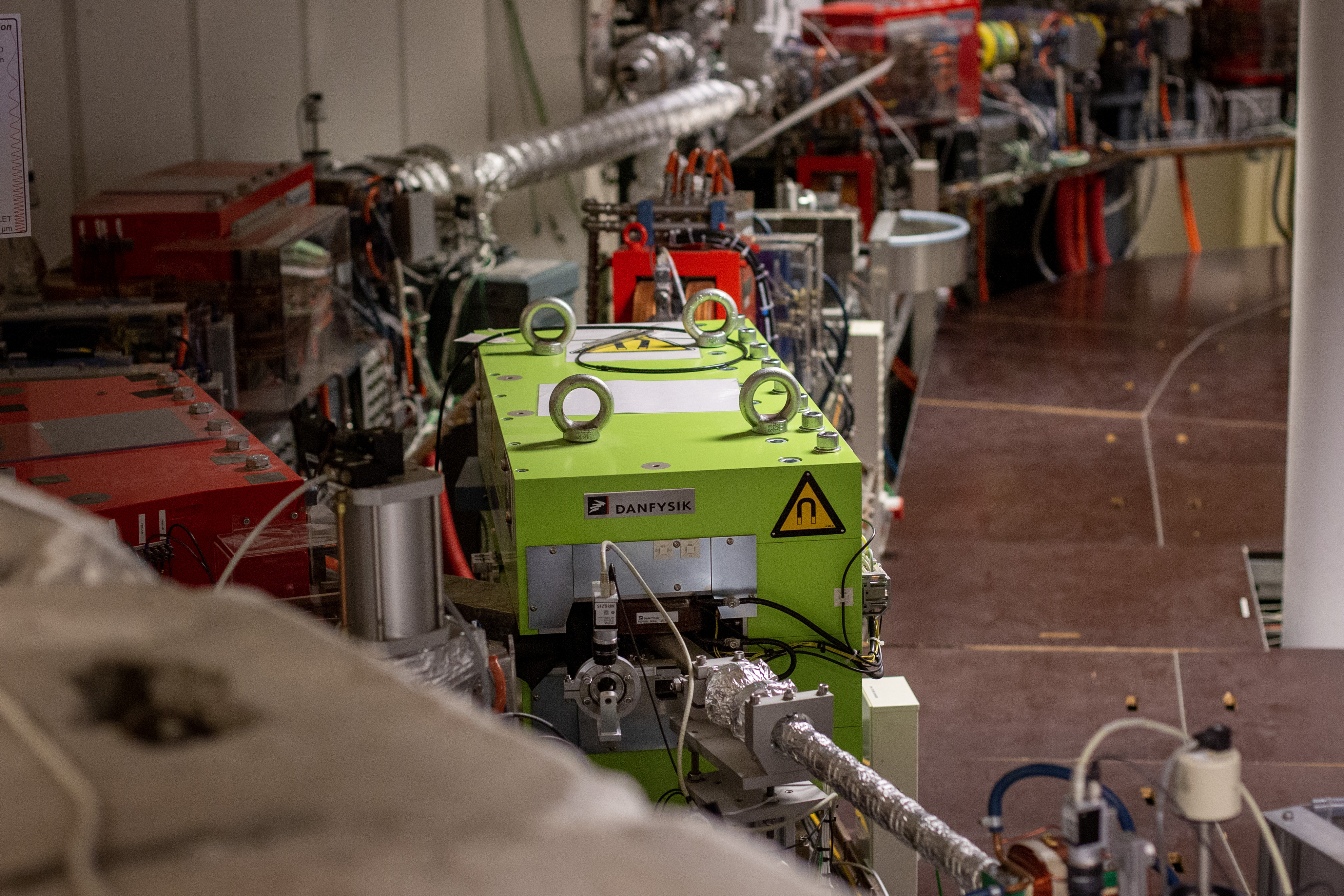

The 'green' permanent magnet installed on the transfer beam line

The transfer beam line, leading to the septum magnet in ASTRID2 for injection of electrons.

The transfer beam line, looking towards ASTRID, the booster ring.

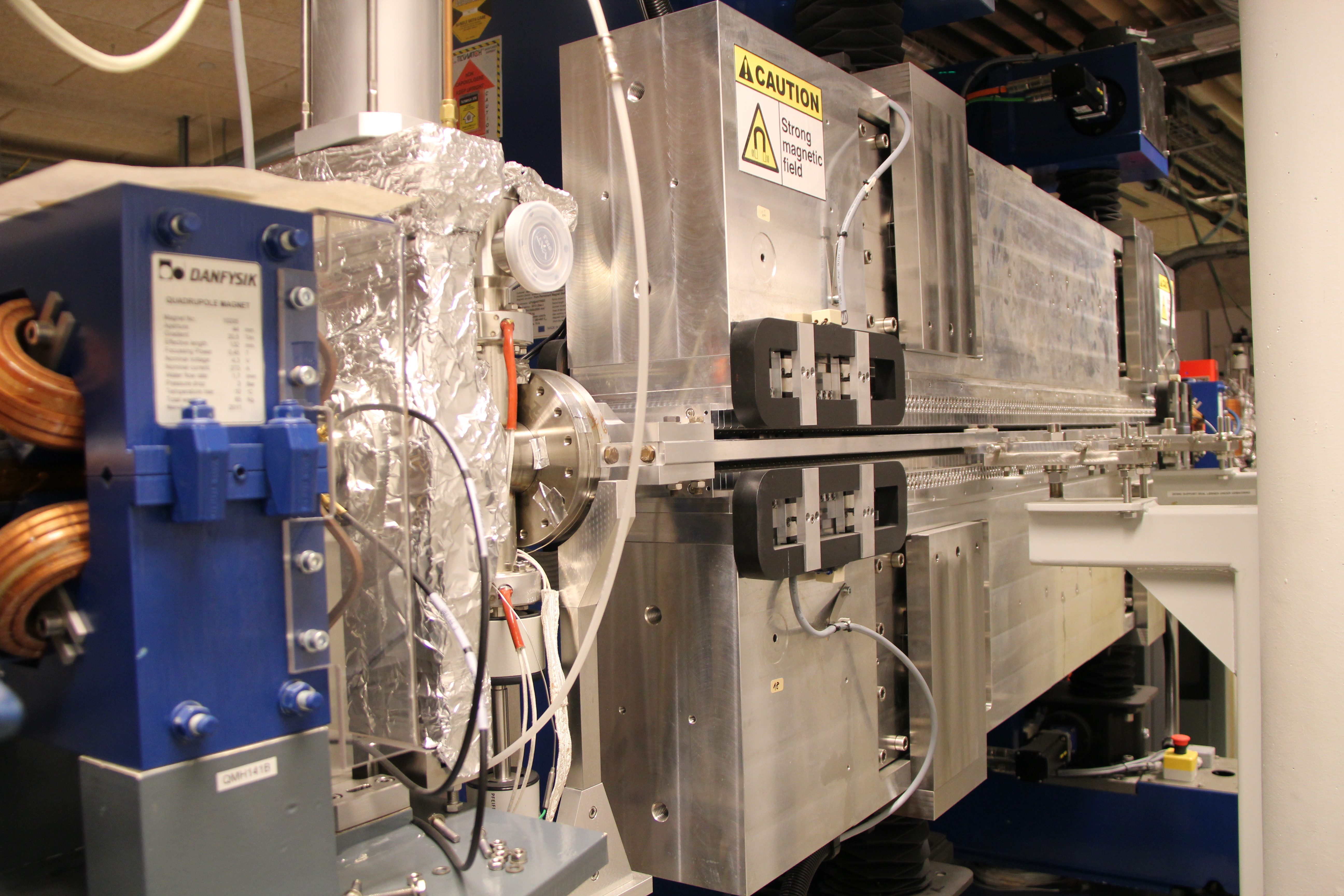

The AMO undulator in straight section 5, which serves the AMO Line.

The AMO undulator in straight section 5, which serves the AMO Line

The ASTRID undulator in straight section 3, which serves the SGM4 beam line.

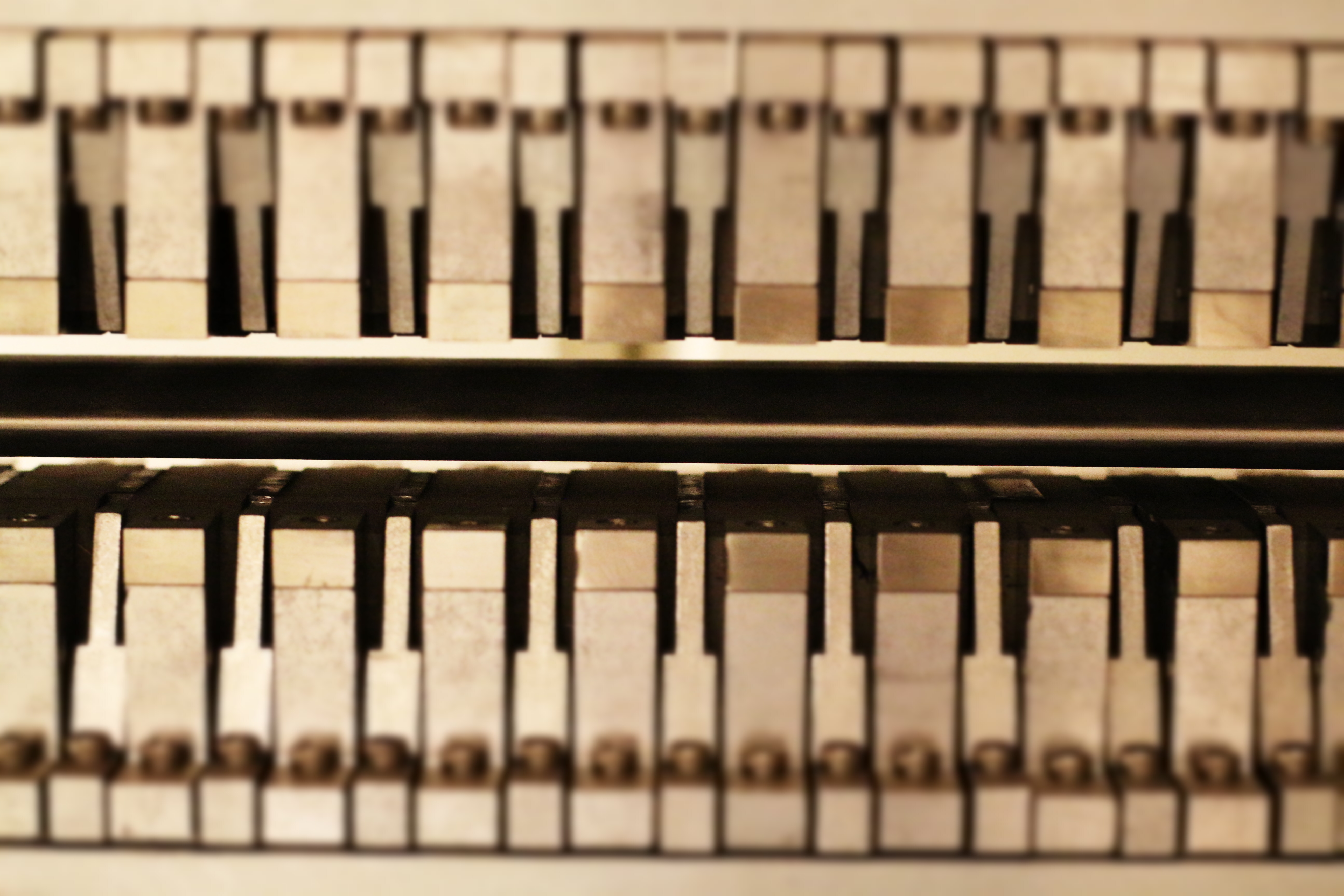

Closeup of the magents in an undulator, photo taken by Rasmus R�rb�k 2016

Multi-pole wiggler and Landau cavity in straight section 2

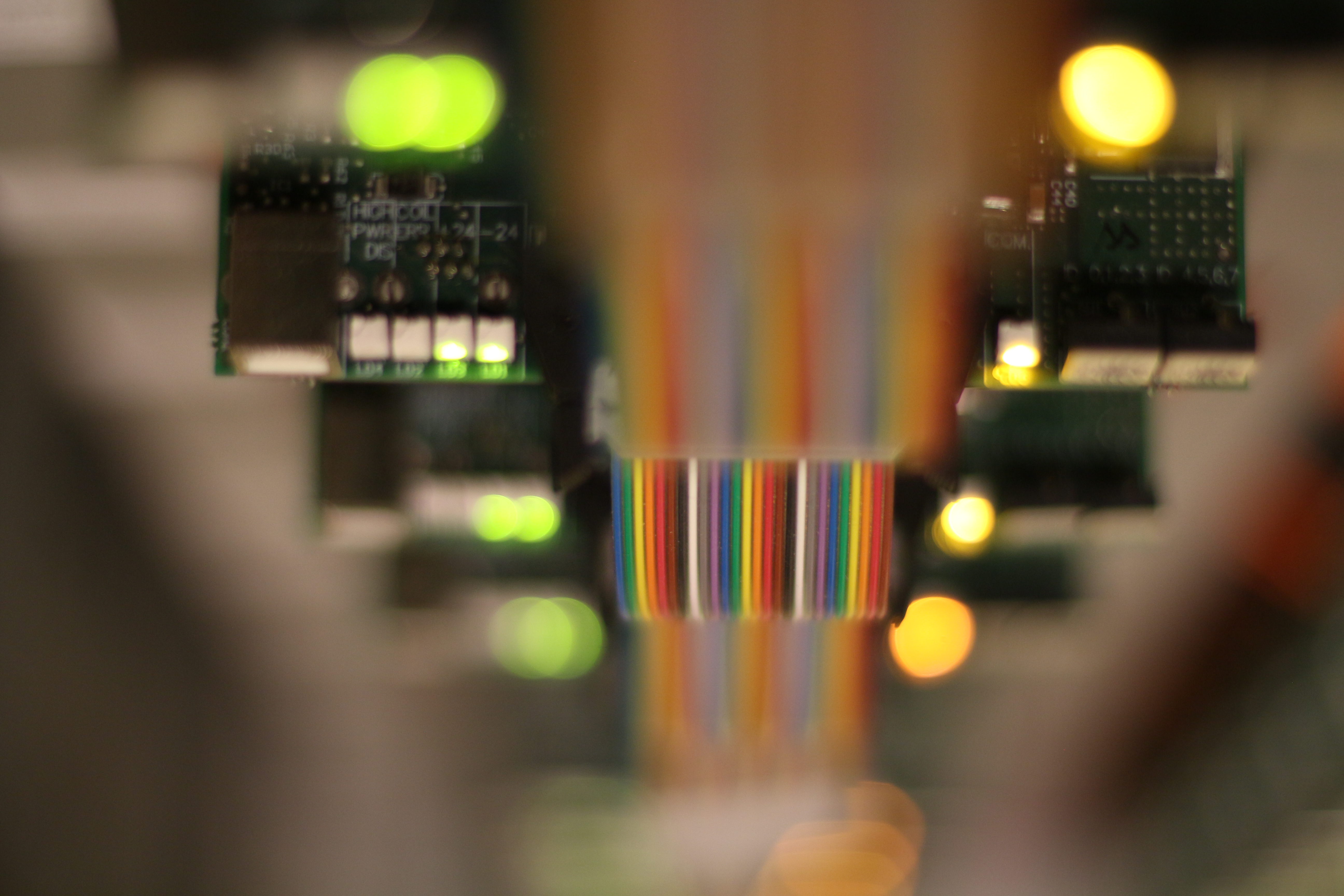

Closeup of electronic power supplies, photo taken by Rasmus R�rb�k 2016

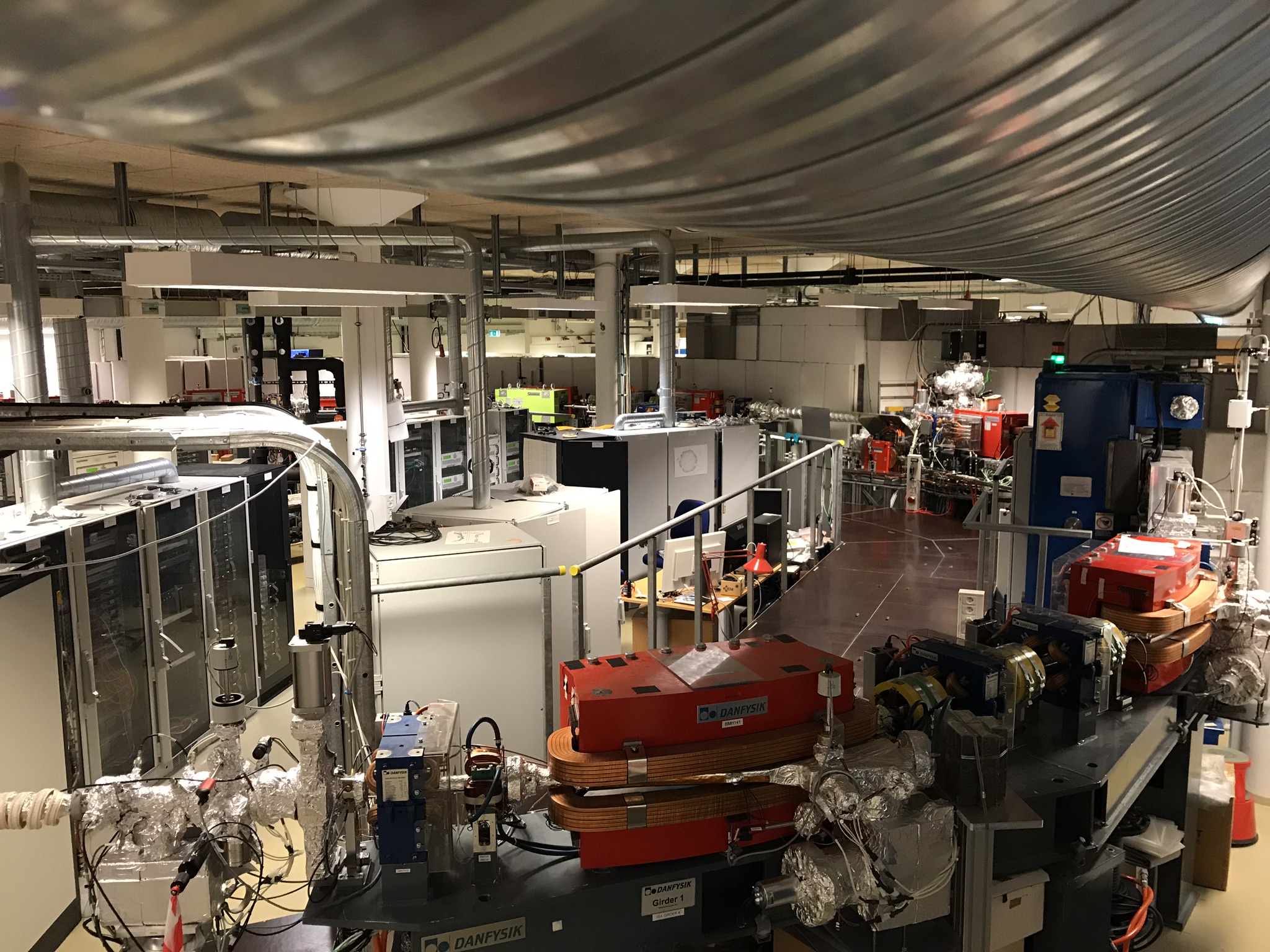

ASTRID2 in 2019

The AMO Line

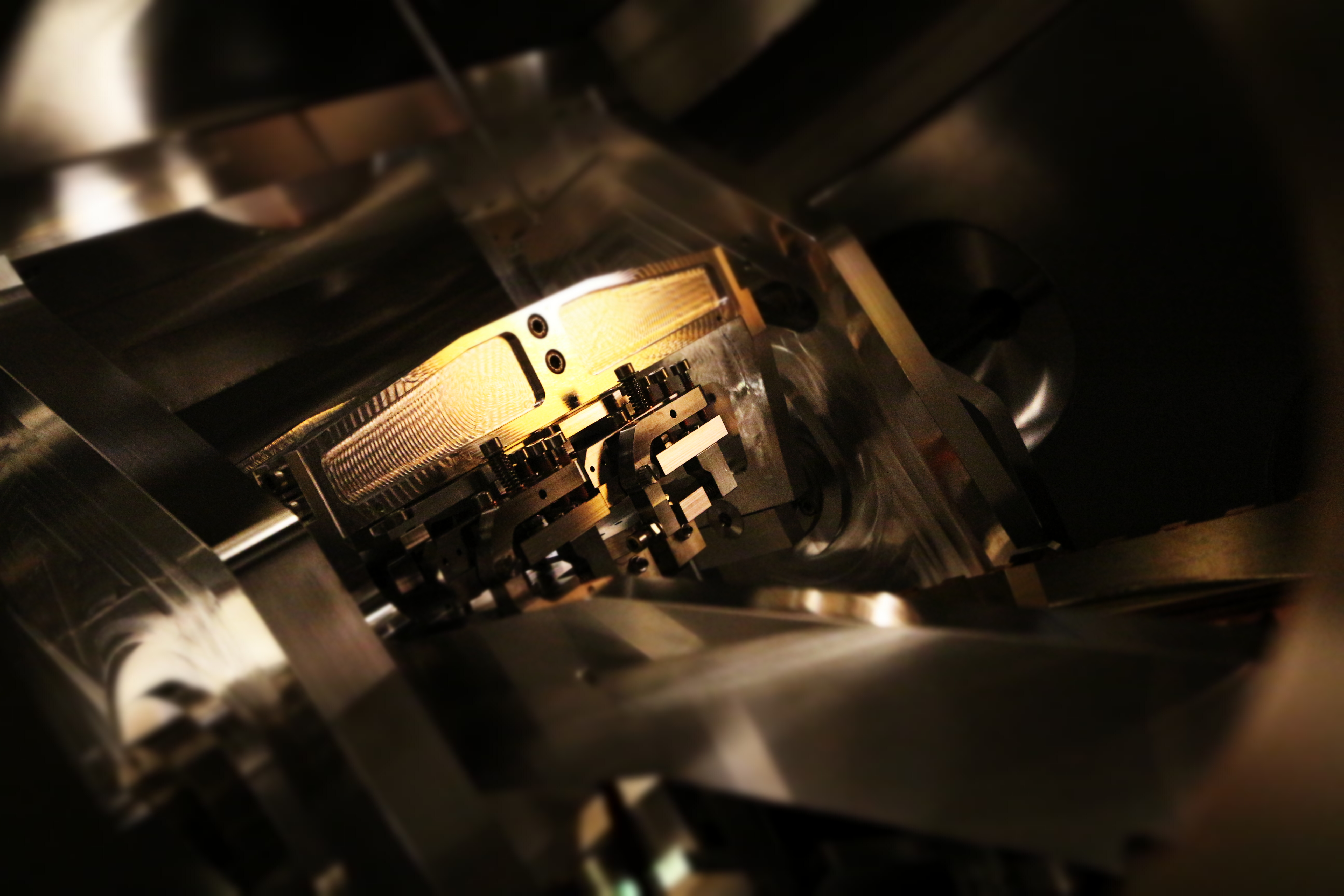

Closeup of the AMO grating, photo taken by Rasmus R�rb�k 2016

Closeup of the AMO grating and folding mirror.

AU-CD beam line, taking photons from a dipole magnet (red) in girder 5.
