Status:

This documentation applies to version 1.1.4.8 of the serial devices.

---

Contents:

 CSerialPortDigitalInOutTimerDevice

• Overview
• Device parameters
• Device configuration

 CSerialPortDigitalInOutDevice

• Overview
• Device parameters
• Device configuration

 Keithley6514

• Overview
• Device parameters
• Device configuration

 SMC_SCRAPERS

• Overview
• Device parameters
• Device configuration

 CSMCDevice

• Overview
• Device parameters
• Device configuration

 CSMCDevice2000

• Overview
• Implementation

 CStpprOnlnModbusDevice

---

The SerialPortDigitalInOutTimer device
(CSerialPortDigitalInOutCalcTimerDevice, Based on CSerialPortCalcDevice)

CSerialPortDigitalInOutTimerDevice Overview:

080307: The CCSerialPortDigitalInOutTimerDevice is under development. It is however using poll to read the inputs.

The CSerialPortDigitalInOutTimerDevice is started as a complete copy of CSerialPortDigitalInOutDevice, and (today) include all of the functionality of this (i.e. it is an extension of CSerialPortDigitalInOutDevice). The CSerialPortDigitalInOutTimerDevice is made so it can replace a CSerialPortDigitalInOutDevice.

The CSerialPortDigitalInOutTimerDevice has besides the control of RTS and DTR and status of the 4 serial control input pins. The additional posibility to use the RTS/CTS and the DTR/DSR pairs as timers (i.e. measure the time since the input last went high). When the input goes high the time is zeroed and the output is set low for one poll time. The idea is that external a flip-flop is triggered by a (short) trigger pulse. The flip-flop output goes high, which is sensed by CTS (or DSR). Time is zeroed, and RTS (or DTR) is set low for one poll time.

---

CSerialPortDigitalInOutTimerDevice parameters:

For address definition the device uses AddTypeId number 9 (Onedim addressing) which uses a0 to determine the parameter number.

parameter number (a0)	Suggested Surname	Parameter name	Data type	Interpretation	Comment
0	enable		Bit (W)		Enable device. When disabled, the serial port is disconnected
1	errNo	Error number	Word (R)	Word.	A zero indicated all is OK, and anything else that something is wrong.
2	errStr	Error String	String (R)	String.	Text string with error.
3	lstErr		String (R)	String.
4	RTS	RTS	Bit (W)		RTS output pin 7 (DB9)
5	DTR	DTR	Bit (W)		DTR output pin 4 (DB9)
6	wIn		Word		All the bits from Serial Port Modem Status
7	CTS	CTS	Bit (R)		CTS input pin 8 (DB9)
8	DSR	DSR	Bit (R)		DSR input pin 6 (DB9)
9	RI	RI	Bit (R)		RI input pin 9 (DB9)
10	DCD	DCD	Bit (R)		DCD input pin 1 (DB9)
11	RTStimerOn	RTStimerOn	Bit (W)		Makes the RTS/CTS pair acts as a timer. Default value is off (false)
12	RTStimer	RTStimer	Float (R)		The time in seconds since the CTS last went high
13	RTSlastTime	RTSlastTime	Float (R)		The value of the RTStimer when it was last reset
14	RTScount	RTScount	Float (R)		Counter for RTS/CTS pulses
15	RTScReset	RTScReset	Bit (W)		Reset of the RTS/CTS counter
16	DTRtimerOn	DTRtimerOn	Bit (W)		Makes the DTR/DSR pair acts as a timer. Default value is off (false)
17	DTRtimer	DTRtimer	Float (R)		The time in seconds since the DSR last went high
18	DTRlastTime	DTRlastTime	Float (R)		The value of the DTRtimer when it was last reset
19	DTRcount	DTRcount	Float (R)		Counter for DTR/DSR pulses
20	DTRcReset	DTRcReset	Bit (W)		Reset of the DTR/DSR counter

In a DB9 serial port signal ground (GND) is pin 5.

The outputs are at ~+12V when high, and at ~-12 when low.
The inputs are high when the voltage is above ~2.5 V, and low when the voltage is below ~0.7 V.
The inputs are compatable with TTL, except that that unconnected inputs are low.

Using a Poll Rate of 10 ms, we achieve an accuracy of +-16 ms typical (have not seen any outside that span looking at more than 10 minutes)

---

CSerialPortDigitalInOutTimerDevice configuration:

The following parameters are stored in the .config file at the front-end computer on which the device is loaded:

• COM-Port: The serial port number.
• Poll rate: How often the device reads the inputs (default 50 ms).

---

The SerialPortDigitalInOut device
(CSerialPortDigitalInOutCalcDevice, Based on CSerialPortCalcDevice)

CSerialPortDigitalInOutDevice Overview:

050805: The CCSerialPortDigitalInOutDevice is ready and working. It is however using poll to read the inputs.

---

CSerialPortDigitalInOutDevice parameters:

For address definition the device uses AddTypeId number 9 (Onedim addressing) which uses a0 to determine the parameter number.

parameter number (a0)	Suggested Surname	Parameter name	Data type	Interpretation	Comment
0	enable		Bit (W)		Enable device. When disabled, the serial port is disconnected
1	errNo	Error number	Word (R)	Word.	A zero indicated all is OK, and anything else that something is wrong.
2	errStr	Error String	String (R)	String.	Text string with error.
3	lstErr		String (R)	String.
4	RTS	RTS	Bit (W)		RTS output pin 7 (DB9)
5	DTR	DTR	Bit (W)		DTR output pin 4 (DB9)
6	wIn		Word		All the bits from Serial Port Modem Status
7	CTS	CTS	Bit (R)		CTS input pin 8 (DB9)
8	DSR	DSR	Bit (R)		DSR input pin 6 (DB9)
9	RI	RI	Bit (R)		RI input pin 9 (DB9)
10	DCD	DCD	Bit (R)		DCD input pin 1 (DB9)

In a DB9 serial port signal ground (GND) is pin 5.

The outputs are at ~+12V when high, and at ~-12 when low.
The inputs are high when the voltage is above ~2.5 V, and low when the voltage is below ~0.7 V.
The inputs are compatable with TTL, except that that unconnected inputs are low.

---

CSerialPortDigitalInOutDevice configuration:

The following parameters are stored in the .config file at the front-end computer on which the device is loaded:

• COM-Port: The serial port number.
• Poll rate: How often the device reads the inputs (default 50 ms).

---

The Keithley6514 device
(CKeithley6514CalcDevice, Based on CCalcDevice)

Keithley6514 Overview:

031205: Converting from old CKeithley6514Device, based on CSimpleDevice.

---

Keithley6514 Device parameters:

For address definition the device uses AddTypeId number 9 (Onedim addressing) which uses a0 to determine the parameter number.

parameter number (a0)	Suggested Surname	Parameter name	Data type	Interpretation	Comment
0	data	Measurement Data	Float (R)	Bipolar Float	The measured data (current, voltage, ..) in Ampere, Volt, ...
1	scale	Scale setting	Word (W)	id 269 (Keithley scale radio)	0: Auto: Keithley auto scaling 1: Auto Slow: Only change down if reading < 0.001 of scale 2: Auto Up: only scale up 3: 2e-11: Fixed manual Scale 4: 2e-10:           " ...
2*	configure	Instrument configuration	Word (W)		Selecting between Current, Voltage, Resistance, and Charge measurement
3*	enable		Bit (W)		Enable device. When disabled, no communication is made with the hardware
4	reset	Resets the device and the instrument	(pulsed control bit) (W)	Bit, checkbox, push bottom (no 572).	Writing a one to this parameter will reset the device, the serial connection, and the instrument. This should not be necessary very often, and should properly be a restricted parameter.
5	error	Error number	Word (R)	Word.	A zero indicated all is OK, and anything else that something is wrong.
6	errStr	Error String	String (R)	String.	Text string with error.
7*	trigMode		Control Bit (W)		Selecting Continues or Triggered measurement
8*	trig		Push button (W)		Trigger one measurement
9*	busy		bit (R)		Indicating measurement in progress
10*	rate	Measurement integration time (Number of Power Line Cycles)	Word (W)		0: slow, 1: medium, 3: fast, 4: custom
11*	NPLC	Number of Power Line Cycles	Double?? (W)		Works together with the rate parameter (for custom selections)
12*	averaging		Word (W)		0: None, 1: Running, 2: Repeating
13*	AvCount	Number of measurements to average	Word (W)

* is indicating a new parameter compared with the old Keithley device

---

Keithley6514 Device configuration:

The following parameters are stored in the .config file at the front-end computer on which the device is loaded:

• COM-Port: The serial port number.
• Baud-rate: The baud-rate used to communicated with the controller (the default of device is 19200 - INSURE that the Keithley is configured for the same as the device - default of the Keithley is 9600).

---

Keithley6514 configuration:

The Keithley need to (manually) be configured as follows

• Set to serial (RS-232) communication
• Data and Stop Bits: 8 bit (default)
• Parity: None (default)
• Terminator: CR (default)
• Flow control: None (default)

The cable needs to be a straight through (DB9 female to DB9 male). Need only Tx, Rx, and GND.

---

The old Keithley6514 device
(CKeithley6514Device, Based on CSimpleDevice)

old Keithley6514 Overview:

230501: Device working in first very simple version.

---

old Keithley6514 Device parameters:

For address definition the device uses AddTypeId number 9 (Onedim addressing) which uses a0 to determine the parameter number.

parameter number (a0)	Suggested Surname	Parameter name	Data type	Interpretation	Comment
0	data	Current Data	Float	Bipolar Float	The measured current in Ampere
1
2
3
4	reset	Resets the device and the instrument	(pulsed control bit)	Bit, checkbox, push bottom (no 572).	Writing a one to this parameter will reset the device, the serial connection, and the instrument. This should not be necessary very often, and should properly be a restricted parameter.
5	error	Error number	Word	Word.	A zero indicated all is OK, and anything else that something is wrong.
6	errStr	Error String	String	String.	Text string with error.

---

old Keithley6514 Device configuration:

The following parameters are stored in the .config file at the front-end computer on which the device is loaded:

• COM-Port: The serial port number.
• Baud-rate: The baud-rate used to communicated with the controller (the default of device is 19200 - INSURE that the Keithley is configured for the same as the device - default of the Keithley is 9600).

---

old Keithley6514 configuration:

The Keithley need to (manually) be configured as follows

• Set to serial (RS-232) communication
• Data and Stop Bits: 8 bit (default)
• Parity: None (default)
• Terminator: CR (default)
• Flow control: None (default)

---

The SMC_Scraper device

Overview:

This device will control a SMC Series Stepping Motor Controller from Thermionics Northwest, inc. which is the scrapers presently used at ASTRID. The present device controls only the simple scrapers without encoder read back. The scrapers are therefore calibrated by running the scrapers completely out and assigning a reference value for that position. This reference value can be changed at any time, though a ConSys Client.

---

Device parameters:

For address definition the device uses AddTypeId number 6 (Motor addressing) which uses a0 to determine which motor is addressed and a1 to give the parameter number.

Generel parameters (a0=0):

parameter number (a1)	Suggested Surname	Parameter name	Data type	Interpretation	Comment
0	reset	Resets the controller	Bit (control)	Bit, checkbox	Writing a one to this parameter will reset the controller. This should not be nessarary very often, and should properly be a restricted parameter.
1	ok	Overall status	Bit (status)	Bit, Concat. String (nr 522)	A zero indicated all is OK, and a one that something is wrong.
2	comm	Communication status	Bit (status)	Bit, Concat. String (nr 522)	A zero indicates that the communication is OK, and a one that the communication is not OK (i.e. probably the cable is not connected proper.)
3	statStr	Status String	String	String	Gives the status of the device in words.

Parameters for each motor (a0='motor nr'):

parameter number (a1)	Suggested SirName	Parameter name	Data type	Interpretation	Comment
0	dac	set position	Float (control)	Bipolar Float (nr 140)	Writing a value to this parameter initiates a movement of the scraper.
1	adc	Read back position	Float (status)	Bipolar Float (nr 140)	Continuously read back of the position of the scraper (also during movement)
2	refval	Reference value	Float (control)	Bipolar Float (nr 140)	Determines the value of the position at the reference point (i.e. when the scraper is completely out)
3	refmov	Reference movement	Bit (control)	Bit, check box (nr 577)	Initiates a calibration of the scraper. The scraper is moved completely in and the position is assigned the reference value. This procedure will give an uncertainty of up to one revolution (0.9 mm), because of the overrun of the thread. To achieve a better accuracy perform a manual calibration as described under setref.
4	mov	Moving	Bit (status)	Bit, Concat. String (nr 578)	A one indicates that the scraper is moving, and a zero that the scraper is not moving.
5	cal	Calibration	Bit (status)	Bit, Concat. String (nr 579)	A one indicated that the scraper position is calibrated, and a zero indicates that the scraper is not calibrated. Note that is not possible to guarantee a calibration is valid, as the scraper can be moved manually and there is no way to detect this.
6	setref	Set reference position	Bit (control)	Pulse bit	Sets the position to the reference position. Can be used after a manual fine trim of the reference position to get the best accuracy for the reference position. Fine trim is done by manually turning the scraper until the click. (Used a refmov first to get all the way in.)



---

Device configuration:

The following parameters are stored in registry at the frontend computer on which the device is loaded:

• COM-Port: The serial port number.
• Baud-rate: The baud-rate used to communicated with the controller (the default is 1200 to avoid to high a dataload on the frontend computer).
• Number of motors: There can be up to 6 motors on a controller.
• For each motor the scraperMax movement.

---

The CSMCDevice

Overview:

This device class is a base class for handling SMC stepping motors. The class provides a common interface, and programming environment for device implementation. Do not use this device directly. Use child devices. As all child devices will provide the same interface structure, the exported parameters from the device, as well as setup, is described for this device.

---

Device parameters:

For address definition the device uses AddTypeId number 6 (Motor addressing) which uses a0 to determine which motor is addressed and a1 to give the parameter number.

Generel parameters (a0=0):

parameter number (a1)	Suggested SirName	Parameter name	Data type	Interpretation	Comment
0	status	Overall status	Word (status)	Word	Status of the controller.
1	text	Overall status	String (status)	String	Status of the controller, but as a text.
2	motors	Number of detected motors	Word (status)	Word	Number of motors detected by the controller



Parameters for each motor (a0='motor nr'+1):

parameter number (a1)	Suggested SirName	Parameter name	Data type	Interpretation	Comment
0	pos	set position	Float (control)	Unipolar Float (nr 156)	Writing a value to this parameter initiates a movement of the step motor. The movement is in steps. The step position definition may wary from implementation to implementation. To have a well defined position use the reading and position parameters.
1	ctrl	Read back position	Float (status)	Unipolar Float (nr 156)	Continuously read back of the position of the scraper (also during movement)
2	reading	Set position in mm	Float (control)	Unipolar Float (nr 157)	Writing a value to this parameter initiates a movement of the step motor. The movement is in millimeters. The definition of this parameter is that a value of zero is the position where the motor is at its full length. The motor is then retracted as the value is increased. The calibration, and operation of this parameter is the same for all child devices of CSMCDevice.
3	position	Read back position in mm	Float (status)	Unipolar Float (nr 157)	Continuously read back of the position of the scraper (also during movement).
4	calibrate	Put in calibrate mode	Bit (control)	Bit, check box (nr 571)	Checking this put the step motor into calibration mode.
5	calibrated	Is calibrated	Bit (status)	Bit, check box (nr 571)	Indicates whether the motor is calibrated.

---

Device configuration:

The SMC devices use a common configuration document for all devices. The document contains information about the serial port, number of motors, motor resolution, and the length of each motor.













---

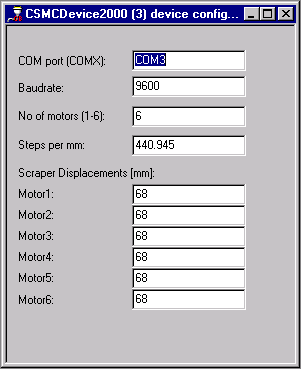

CSMCDevice2000

Overview:

The SMC 2000 device is a child device of the CSMCDevice. This device implement the commands needed for controlling the SMC 2000 controller box.

Implementation:





---
